Dust Filter Bag Installation Guide: Mastering Details to Safeguard Clean Production

In industrial production, dust pollution not only impairs environmental quality but also threatens equipment lifespan and employee health. High-quality dust filter bags, as core components for dust control, provide efficient solutions for numerous industries. However, even with premium dust filter bags, their filtration efficiency will be significantly compromised without standardized installation procedures. Today, we will take you through a comprehensive understanding of the key points for dust filter bag installation, helping enterprises achieve efficient dust removal and green production.

I. Pre-Installation: Adequate Preparation Lays the Foundation

The first step in standardized installation starts with thorough pre-installation preparation. Professional technical teams emphasize that before installation, efforts should be focused on three aspects: "material inspection," "site cleaning," and "tool preparation" to avoid subsequent installation quality issues caused by overlooked details.

1.Material Verification to Ensure Compatibility

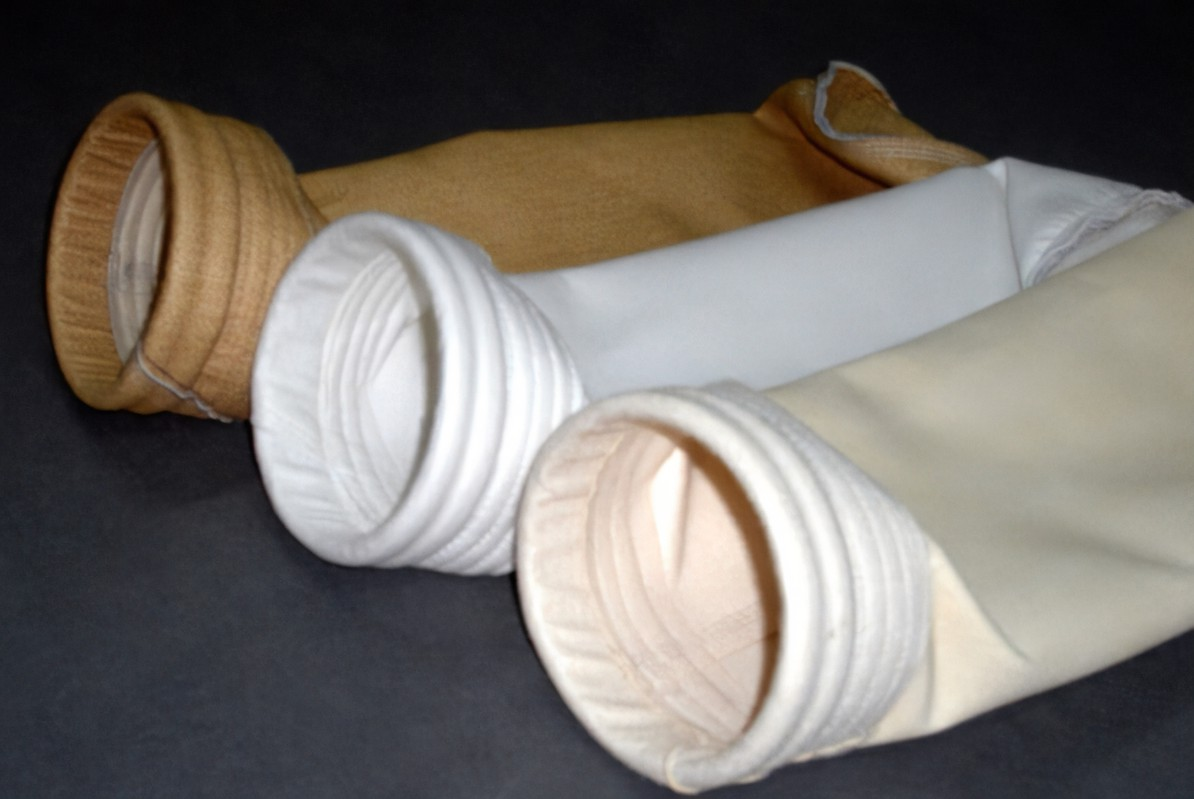

After receiving the dust filter bags, compare them with the order and product manual to check if the specifications (length, diameter, material) and quantity of the filter bags match the requirements. Dust filter bags are available in various materials such as polyester, polypropylene, and PPS, which are suitable for different working conditions (e.g., high-temperature, high-humidity, and corrosive environments). It is crucial to confirm that the filter bag material is compatible with the actual production scenario to prevent filtration failure due to improper material selection. Meanwhile, inspect the appearance of the filter bags for damages, thread breakage, or burrs. If any abnormalities are found, contact the after-sales team promptly for resolution.

2.Site Cleaning to Eliminate Hazards

Before installation, thoroughly clean the interior of the dust removal equipment (including filter bag cages, tube sheets, and filter chambers) to remove dust, debris, and oil stains. Residual impurities inside the equipment may scratch the filter bags during installation or block the filter bag pores, affecting filtration efficiency. It is recommended to use compressed air (with a pressure not exceeding 0.4MPa) to purge the interior of the equipment, ensuring no visible impurities remain before proceeding with installation.

3.Tool Preparation to Ensure Efficiency

Prepare dedicated installation tools in advance, such as a torque wrench (for securing filter bag cages), a tape measure (for verifying filter bag length), gloves (to prevent oil stains on hands from contaminating the filter bags), and sealant (for sealing gaps in the tube sheet). Customized toolkits can be prepared based on actual needs to ensure a standardized and efficient installation process.

II. During Installation: Strict Procedures and Meticulous Control

The installation of dust filter bags follows four key steps: "positioning — bag installation — fixation — inspection." Each step requires precise operation to ensure the filter bags fit perfectly with the equipment, preventing issues such as air leakage and filter bag detachment.

1.Precise Positioning to Align with the Tube Sheet

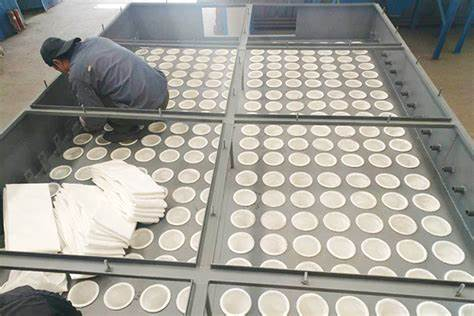

First, align the filter bag cage (for external filtration type) or the filter bag itself (for internal filtration type) with the holes on the tube sheet of the dust removal equipment. The tube sheet serves as the core reference for filter bag installation, so it is essential to ensure the center of the filter bag is perfectly aligned with the center of the tube sheet hole, with a deviation not exceeding 2mm. If the tube sheet is deformed or has hole position deviations, correct it first before installation.

2.Gentle Bag Installation to Avoid Damage

Hold both ends of the filter bag with both hands and slowly insert it into the tube sheet hole (for external filtration type, first 套 the cage into the filter bag before inserting them together). Avoid pulling or rubbing the filter bag forcefully during installation. This is especially important for high-temperature coated filter bags, as the coating layer is fragile and excessive friction can cause damage, affecting filtration precision. For longer filter bags, auxiliary tools (such as ladders or hanging rods) can be used to ensure the filter bag is lowered vertically without tilting.

3.Secure Fixation for Tight Sealing

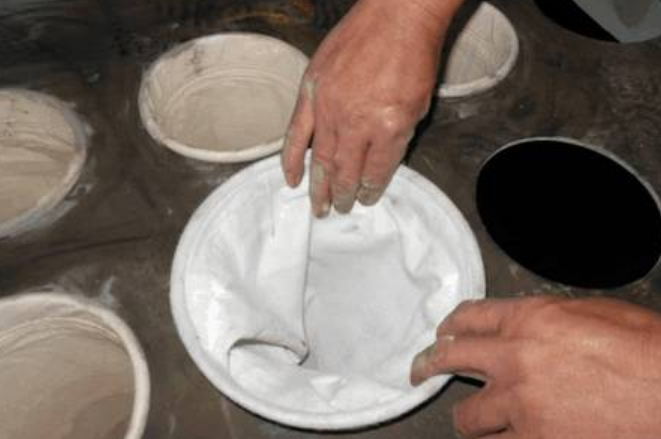

After inserting the filter bag, secure the upper opening of the filter bag using clamps, nuts, or spring expandable rings. Taking the commonly used spring expandable ring filter bag as an example, embed the expandable ring into the sealing groove of the tube sheet hole, then press the expandable ring by hand to ensure it fits tightly into the sealing groove without looseness. After fixation, use a torque wrench to check the tightness of the fasteners: the tightening torque for external filtration filter bag cages should be controlled between 15-20N・m, and for internal filtration filter bag clamps, it should be between 10-15N・m. This prevents air leakage due to insufficient tightness or filter bag damage due to over-tightening.

4.Individual Bag Inspection to Eliminate Issues

After installing a single filter bag, conduct a preliminary inspection: gently pull the filter bag by hand to confirm it is secure; check the seal between the filter bag and the tube sheet to ensure no gaps; verify that the filter bag is vertical without twisting or folding. Once all filter bags are installed, perform an overall airtightness test: close the inlet and outlet valves of the equipment, inject compressed air (at a pressure of 0.2-0.3MPa) into the filter chamber, and apply soapy water to the seal between the tube sheet and the filter bags. If no bubbles appear, the sealing is good; if bubbles are present, re-adjust the fasteners or replace the sealing components.

III. Post-Installation: Commissioning, Maintenance, and Lifespan Extension

Standardized installation is only the starting point for the efficient operation of the dust removal system; post-installation commissioning and daily maintenance are equally important. Professional technical teams recommend the following tasks after installation:

1.No-Load Commissioning to Confirm Operation

Before starting the dust removal equipment for the first time, conduct a no-load commissioning: turn on the fan and observe if the filter bags shake or collide (if so, adjust the filter bag spacing or reinforce the cages); check if the equipment's air pressure and air volume meet the design requirements. If there are abnormal air pressure issues, investigate whether there is filter bag blockage or air leakage.

2.Regular Inspection and Timely Maintenance

After putting the equipment into operation, inspect the filter bags regularly (recommended once a week): observe the dust accumulation on the filter bag surface; if the dust layer is too thick (exceeding 5mm), adjust the dust cleaning cycle; check for filter bag damage or aging. If damaged filter bags are found, replace them promptly (a quick replacement service can be provided to ensure no impact on production). Meanwhile, regularly clean the accumulated dust in the equipment's hopper to prevent excessive dust from pressing against the filter bags.

3.Professional After-Sales Support for Full-Cycle Protection

A one-stop service combining "installation guidance + after-sales maintenance" can be provided to customers. If technical difficulties are encountered during installation, customers can contact the professional technical team at any time, who will provide assistance through video guidance, on-site support, and other methods. After the equipment is put into operation, regular follow-up visits will be conducted to provide filter bag maintenance advice, helping to extend the filter bag lifespan and reduce operating costs.

IV. High-Quality Dust Filter Bags: Dual Assurance of Professionalism and Quality

The installation effect of dust filter bags depends not only on the installation process but also on the quality of the filter bags themselves. High-quality dust filter bags should have the following core advantages to provide reliable support for dust control:

•

Premium Materials

Using imported base materials and advanced weaving and coating technologies, the filtration precision can reach 0.1μm, and the temperature resistance range is -20℃ to 280℃, making them suitable for complex working conditions in industries such as thermal power, iron and steel, chemical engineering, and cement.

•

Customized Services

Filter bag specifications and materials can be customized according to equipment models, dust characteristics, and production requirements to ensure perfect compatibility between the filter bags and the equipment.

•

Full-Cycle Support

Provide professional services throughout the entire cycle, from product selection and installation guidance to after-sales maintenance, ensuring customers have no worries.

Clean production starts with details; efficient dust removal requires not only selecting the right filter bags but also installing them properly. Professional teams are committed to helping enterprises protect their production environment and achieve green development with reliable technology, high-quality products, and attentive services. If you have needs for dust filter bag selection, installation, or maintenance, please feel free to consult us for customized solutions!
