Structure and Operation Specifications of Air Conveying Chute
In industrial fields such as building materials, electric power, and chemical engineering, the air conveying chute serves as a core special device for conveying powdery materials. Adopting the air fluidization conveying principle without complex transmission structures, the equipment features stable operation, low failure rate and low energy consumption. It is widely applied in the conveying operations of powdery materials including cement, raw meal and fly ash. This paper systematically elaborates on the structural composition and standardized operation specifications of the air conveying chute.

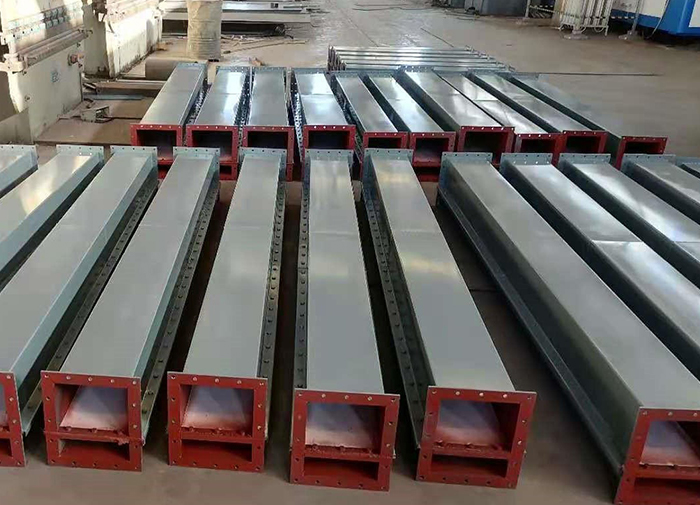

The air conveying chute is designed with an inclined trough structure and fabricated from high-quality thin steel plates. It boasts a compact structure, excellent sealing performance and convenient maintenance. The equipment consists of four core components that work in coordination to ensure stable material conveying, with detailed specifications as follows:
1.1 Upper and Lower Trough Shells
The upper and lower trough shells form the main bearing structure of the equipment, divided into an upper conveying cavity and a lower air supply cavity. The upper cavity acts as a material conveying channel for bearing and transporting powdery materials, while the lower cavity functions as a pressure-stabilizing air chamber for storing and buffering low-pressure supply air. Adopting a modular assembled design, the standard trough sections can be flexibly combined according to on-site working conditions and conveying distances, delivering strong universality.
1.2 Permeable Layer (Core Component)
Sandwiched between the upper and lower trough shells, the permeable layer is the functional core of the air conveying chute. High-strength polyester breathable fabric is adopted as the standard configuration, while ceramic breathable plates are applicable for harsh working conditions. This component features high temperature resistance (≤150℃), corrosion resistance, wear resistance and low moisture absorption. It can uniformly diffuse low-pressure airflow and effectively prevent powdery material leakage, acting as the key to realizing fluidized conveying of powdery materials.
1.3 Air Supply System
The air supply system is composed of a dedicated low-pressure blower, air supply pipelines and air volume regulating valves. It provides continuous and stable low-pressure airflow for the lower cavity. Operators can precisely adjust the air volume according to material characteristics and conveying load to ensure stable and efficient material conveying.
1.4 Auxiliary Fittings
Auxiliary fittings include sealing gaskets, flange fasteners, material inlet and outlet ports, branch control valves and material blockage monitoring devices. With a fully sealed assembly design, the equipment effectively prevents powder leakage and air leakage during operation, meets the industrial dust-free environmental protection standards, and adapts to various refined production working conditions.
Materials are introduced into the upper conveying cavity from the high-end feed inlet of the chute. The low-pressure airflow generated by the blower enters the lower cavity through the air duct and uniformly penetrates into the gaps of powdery materials via the permeable layer. This converts solid powder into a fluidized state and greatly reduces the friction resistance between material particles. With the standard inclination angle of 6° to 10°, the fluidized materials slide downward automatically by gravitational potential energy and are continuously discharged from the low-end discharge port to complete the conveying process.
Most operational failures of air conveying chutes result from non-standard operation. To guarantee stable equipment operation and extend service life, standardized operation procedures must be strictly followed, as specified below:
3.1 Pre-operation Inspection
Comprehensive pre-operation inspection shall be conducted before startup. Check that flange connections and sealing gaskets are intact without damage or air leakage risks. Verify that the permeable layer is flat and unobstructed without wrinkles, blockages or damage. Confirm the equipment inclination angle meets the 6°-10° standard and all valves are in normal opening and closing states. Clean all sundries and accumulated materials inside the cavity to ensure a clean no-load state of the equipment.
3.2 Startup Sequence (Strictly Enforced)
Follow the strict startup principle of air supply first, feeding later; reverse operation is prohibited. Start the low-pressure blower and operate it under no-load conditions for 1 to 2 minutes until the internal airflow is stable and uniform. Then start the feeding equipment for uniform feeding. During operation, precisely adjust the air volume according to material humidity and conveying speed to achieve uniform material fluidization and avoid material accumulation and air channeling.
3.3 Operational Process Control
The equipment is applicable for conveying dry powdery materials with a moisture content of no more than 1%. Feeding with damp or agglomerated materials is strictly forbidden to prevent cavity blockage. During operation, continuously monitor the discharge status and equipment working conditions. Abnormal conditions such as slow discharging and material accumulation shall be addressed by adjusting the air volume or troubleshooting permeable layer blockages. The sealing performance of the equipment shall be maintained throughout operation to prevent powder and air leakage.
3.4 Shutdown Sequence
Standard shutdown procedures shall be implemented. Stop the feeding operation first; direct shutdown of the blower is prohibited. The air supply equipment can only be closed after all materials inside the cavity are completely conveyed and emptied, so as to avoid material accumulation, agglomeration and permeable layer blockage caused by residual materials. For long-term shutdown, thoroughly clean the dust inside the cavity and implement comprehensive moisture-proof and dust-proof maintenance measures.
▪ Adopting no mechanical transmission structure with few wearing parts, the equipment achieves a low failure rate and effectively reduces operation and maintenance costs as well as shutdown losses.
▪ The fully enclosed sealed conveying structure eliminates powder leakage and complies with industrial environmental protection production specifications.
▪ The modular structure features light weight and convenient installation, adapting to complex conveying conditions such as linear and branch conveying.
▪ With stable operating conditions and low noise, the equipment is widely applicable in cement, electric power, metallurgy, chemical and other industrial sectors.
Mastering the structural principles and standardized operation specifications of air conveying chutes can effectively improve equipment operation efficiency, extend service life, fundamentally reduce common faults such as material blockage and powder leakage, and ensure continuous and stable operation of production lines.
