Air Slide Fabric Manufacturer in China

What is Air Slide Fabric(air slide canvas,air slide cloth) ?

Air slide fabric is a solid fabric for air sliding. It has many other names: air slide cloth, air slide canvas, air permeability fabric, fluidizing cloth, aeration fabric, air slide belt, etc. Its working principle is: the powder material flows along the static fabric slideway under the action of tiny air pressure. The air slide fabric is arranged between the powder object and the air chamber, the upper part is the powder object, and the lower part is the air chamber. Under the action of air pressure, the powder is fluidized through the conveyor belt, so as to achieve the purpose of conveying the powder object. Using air slide cloth to transport powder is an effective way to save energy and reduce costs.

Our Advantages

DRAGON develops, produces and markets technologically advanced, high-quality heavy-duty fabrics. We are the manufacturing experts in air slide fabric.

• High quality raw material in weaving process.

• High tension weaving.

• Robust & stable weave.

• High weight per M².

• Good resistance to abrasion.

• Smooth surface and uniform air.

Specifications

• Thickness: 3mm-10mm,

• Width: Can be customized.

• Material: Filmament polyester, spun polyester, aramid, basalt, kevalr,nomex etc.

• Heat resistance: 120 ℃ ~ 1200 ℃.

• Our capacity: 20000m²/ month

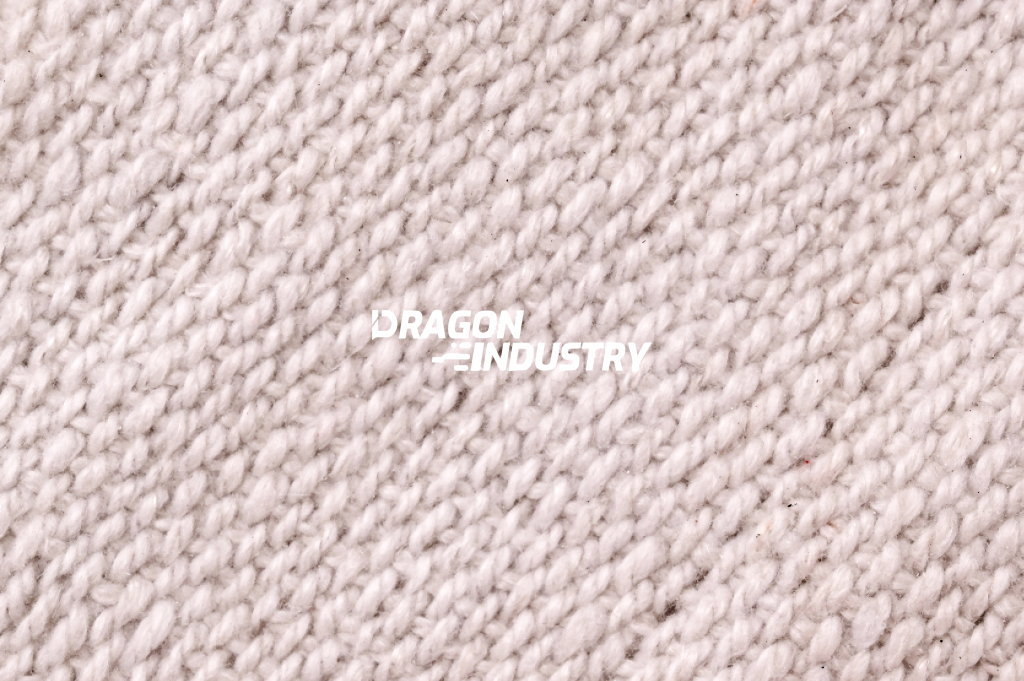

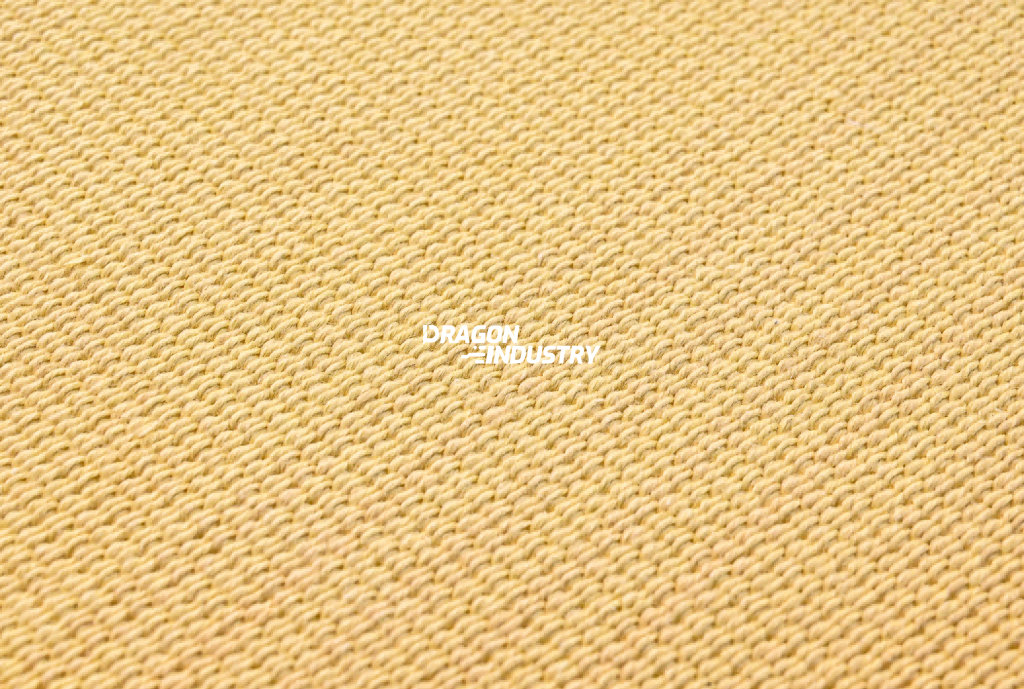

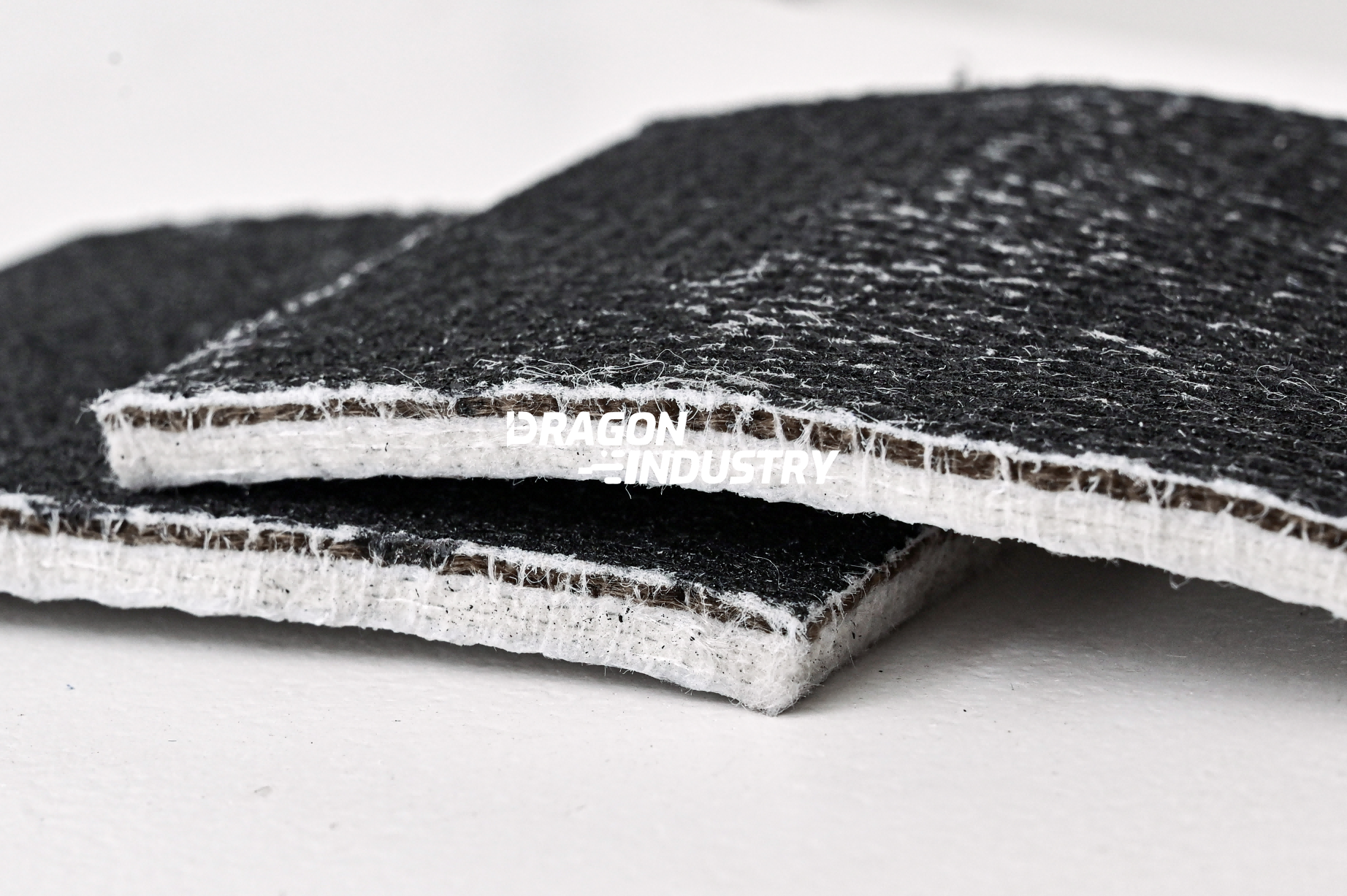

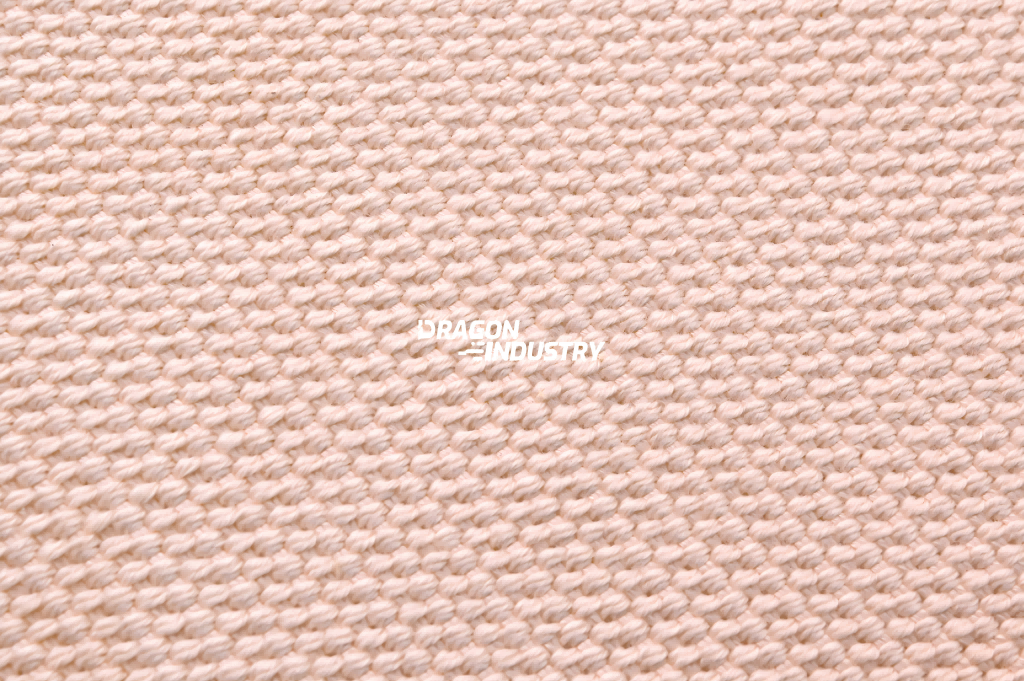

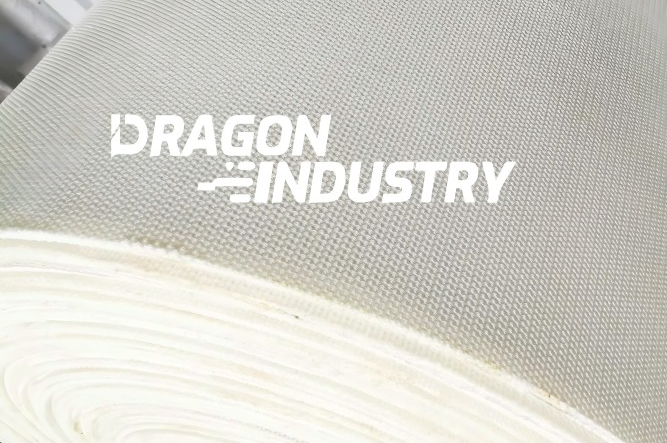

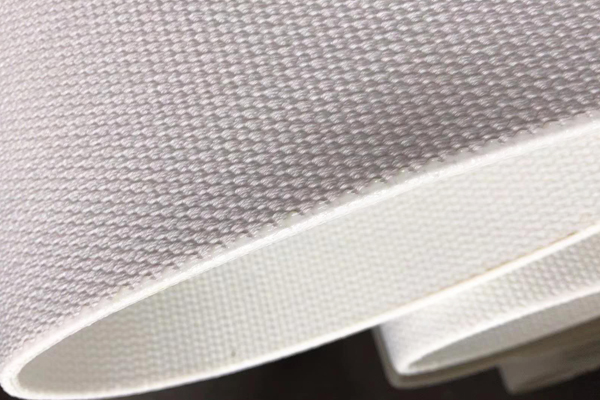

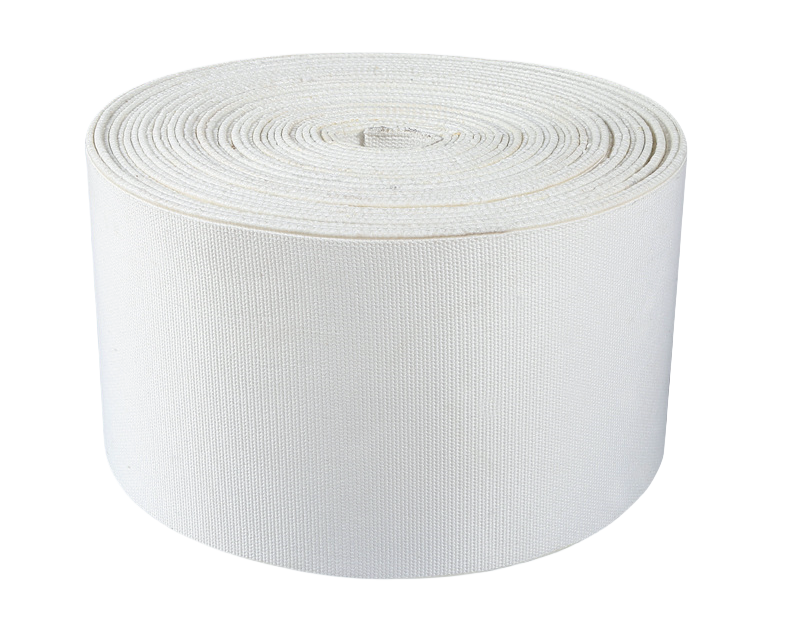

Types of Air Slide Fabrics

How Does It Use？

• Compressed air to overcome the opposition of the air slide fabric.

• Increased pressure level.

• The compressed air reaches a suitable level to start the fluidization.

• Only after reach a constant pressure on the whole surface,
  the compressed air will penetrate through the fabric and enter the cement.

• The cement becomes fluid and move to the discharging point.
