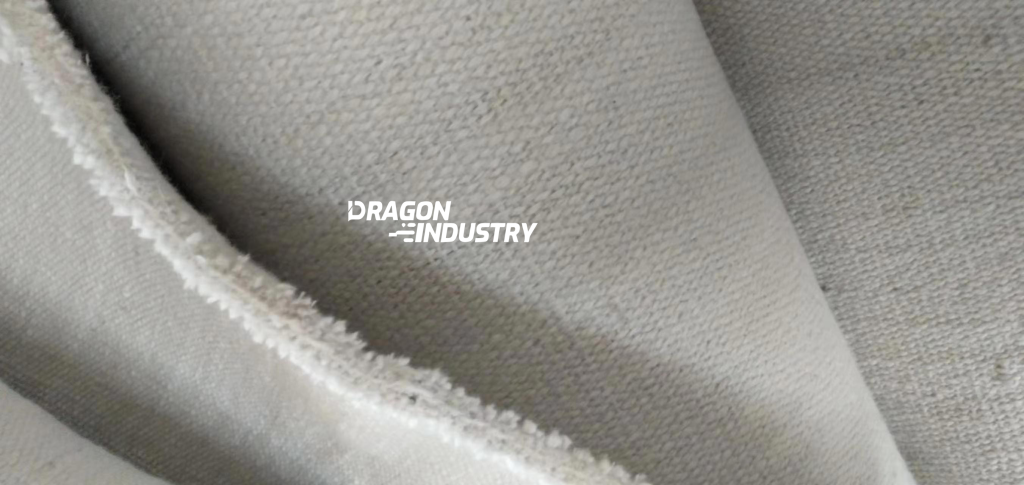

Ceramic fiber fluid-bed air slide fabric

Scan the QR code

    Air sliding fabric is a solid fabric for air sliding. It has many other names: air slide cloth, air slide canvas, air permeability fabric, fluidizing cloth, air fabric, air slide belt, etc. Its working principle is: the powder material flows along the static fabric slideway under the action of tiny air pressure. The air slide belt is arranged between the powder object and the air chamber, the upper part is the powder object, and the lower part is the air chamber. Under the action of air pressure, the powder is fluidized through the conveyor belt, so as to achieve the purpose of conveying the powder object. Using air slide cloth to transport powder is an effective way to save energy and reduce costs.

Technical Specification Sheet

Gram weight (kg/m2): 3.2

Thickness(mm): 6 .0

Air throughput (m³/m².s): 10±5

Tensile strength (kg/cm²): 150

Operating temperature: ≤1250℃

Features:

    Ceramic fiber fluid bed air slide fabric is made of high-quality single crystal multi-body high-strength ceramic fibers and finely woven with heat-resistant and tensile resistant 304 white steel filaments. It has high temperature resistance and good breathability. Widely used in fluidized bed rapid cooling equipment for suspension furnaces and roasting furnaces in the metallurgical, non-ferrous, and chemical industries.
