Air sliding fabric is a solid fabric for air sliding. It has many other names: air slide cloth, air slide canvas, air permeability fabric, fluidizing cloth, air fabric, air slide belt, etc. Its working principle is: the powder material flows along the static fabric slideway under the action of tiny air pressure. The air slide belt is arranged between the powder object and the air chamber, the upper part is the powder object, and the lower part is the air chamber. Under the action of air pressure, the powder is fluidized through the conveyor belt, so as to achieve the purpose of conveying the powder object. Using air slide cloth to transport powder is an effective way to save energy and reduce costs.
Features of air slide fabric:.png)

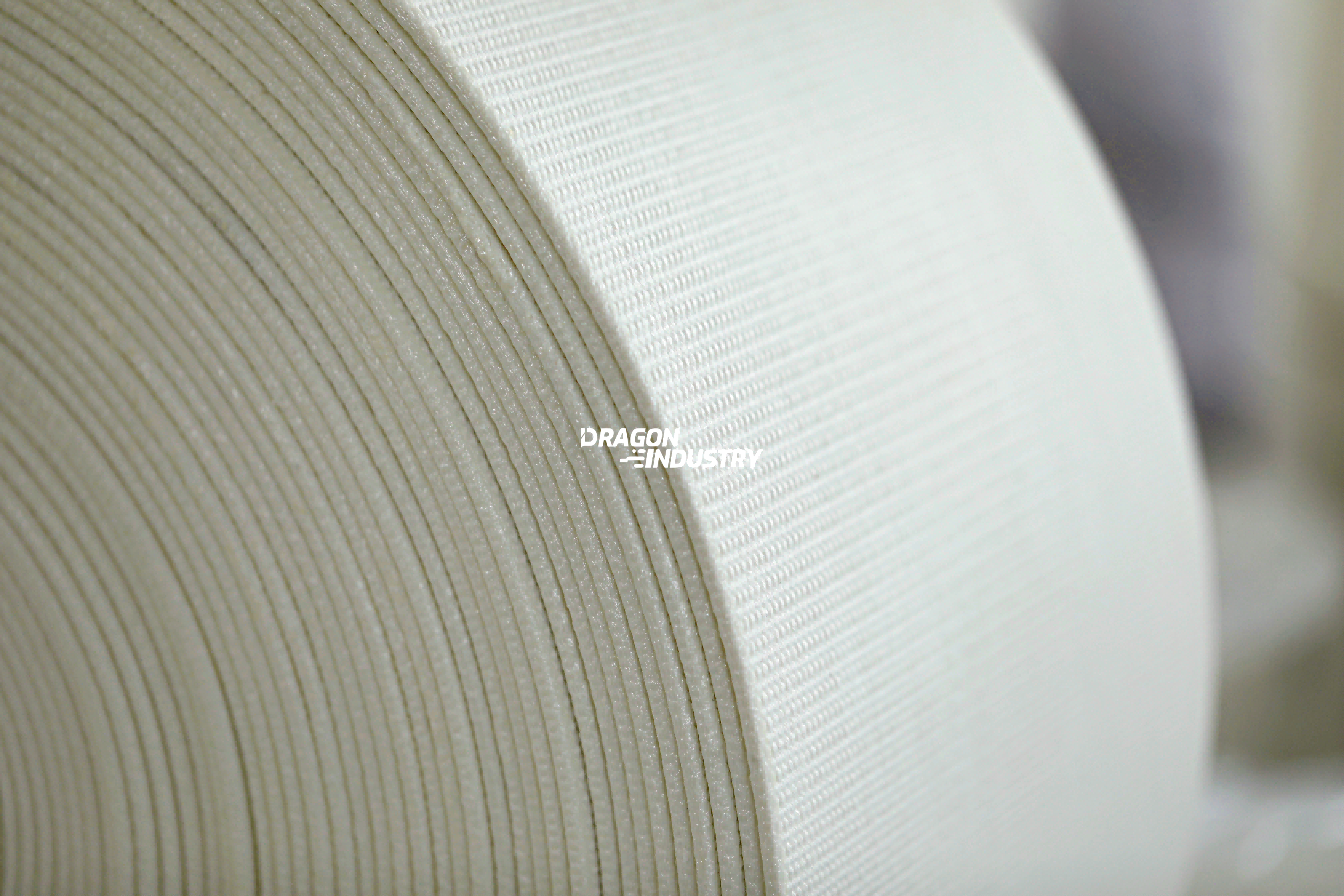

Air slide fabric woven from high-quality synthetic fiber raw materials, characterized by a smooth and flat surface, good overall integrity, uniform and stable breathability, wear resistance, high temperature resistance, non hygroscopicity, non ash return, easy installation, and long service life.
Usage of air slide fabric:
The core material of powder material conveying equipment in the cement industry. Suitable for pneumatic conveying of powdered and granular materials in industries such as air conveying chutes, homogenization tanks and bottoms, pneumatic lift pumps, flow valves, bulk cement silos, bulk trucks, trains, ship tankers, as well as metallurgy, chemical, and power.
Product Standard:
Implement Q/320621DDV01-2009 enterprise standard.
Specifications and dimensions index | ||
Breadth | 100-1600（ mm） | ±5 |
Length | 20-100（m） | ±0.20 |
Thickness | 7-10（mm） | ±0.20 |
technical index | ||
Working temperature | Continuous temperature | 150℃ |
Instant temperature | 180℃ | |
Tensile strength | Warp | 4700N/mm |
Weft | 3500N/mm | |
Tensile elongation | ≤6% | |
Air permeability | 2—3m³/m²min | |
Filter resistance | =2m³/m²min | 800Pa—1200Pa |
＜3m³/m²min | ＜2000Pa | |
.png)
Special Reminder:
Customization: If the width, thickness, and resistance requirements exceed the specified range, you can communicate and negotiate with our Shuanglong company.
Transportation: Product transportation and storage methods: During the transportation process, the product should be handled with care, and rough loading and unloading are not allowed. The transportation tools should be clean and not mixed with oil and chemicals. At the same time, measures should be taken to prevent sun exposure, rain and snow splashing.
.png)
Storage: The product should be stored in a dry and well ventilated warehouse. It is strictly prohibited to mix it with oil chemicals. Moisture prevention measures should be taken and the product should be kept away from heat sources.
Air slide fabric usage:
Used for homogenization of raw material warehouses and cement depot bottoms.
For bulk carriers.
For raw material, cement conveying.
Semi-trailer for powder pellet material transport.
